Portable Home Scale Biogas Plant for Cooking €1200
...
Protable Biogas Plant For Cattle Dung Treatment
Technical Data:
Minimum Ambient Temperature | 10 °C |
Biogas Booster Pump | 20W (free offered) |
Space of green house | 3.4m3 |
Volume of digester | 1.7m3 |
Volume of gas storage | 1.3m3 |
Biogas production | max 2m3/d (for cooking over 4hour) |
Output | Biogas and Clean natural liquid fertilizer |
Gas Pressure | 0.12 bar |
Gas Flow | ± 36 L/min |
Weight (empty) | 80 KG |
Dimensions (L*W*H) | 156*120*195cm |
Waste Treatment Capacity: waste can be mixed
Raw material | Maximum(Kg/d) |
Food waste | 25 |
Pig manure | 45 |
Cow manure | 60 |
Chicken manure | 27 |
Human manure | 33 |
Vegetable | 65 |
Compare with tranditional composter

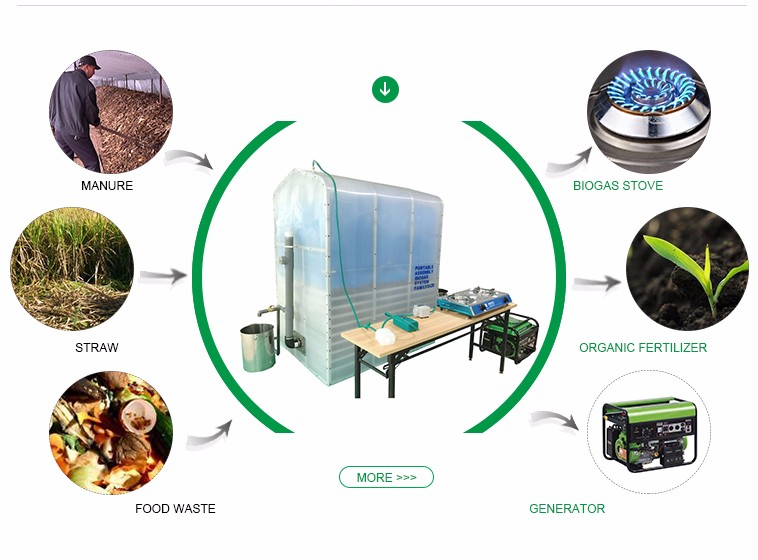

Not only does it break down organic waste more efficient, but it also captures methane gas which is produced throughout anaerobic digestion process and make it available for you to cook in home about 4 hours, and also easily get rich liquid fertilizer.
How long warranty about this system?
The system has an estimated lifespan of 10 years than other plastic type, 1 year warranty.
The components will replace for free if you find some break during receiving and pls contact us within 7 days!
Is cooking on biogas as safe as cooking on LPG/natural gas?
Yes, absolutely much safer. Unlike LPG cylinders or propane tanks, the biogas in the system is not compressed and is stored at a low pressure.
Is there a bad smell?
The process of AD occurs inside digester tank, therefore does not release much odor.
Just maybe a little smell when you open the inlet to add waste in. The generated biogas also filtered by biogas scrubber to remove H2S.
Any feedback from clients?
