Hot Selling 400W 12V/24V Wind Generator 3/5 Blades Optional Permanent Magnet Wind Turbine Generator Wind Generator Kits 150,00€

Wind Generator

Wind turbine generator can transfer wind power to electricity. Wind is an important renewable resources. To meet most of customers' requirements, we promote an economy wind turbine generator which is cheap and good quality. Considering the generator can start easily, our engineers develop the lower start-up wind speed. Start the wind turbine generator only needs 2m/s wind speed.  20-year long life-span wind power generator is deserved you to own it.

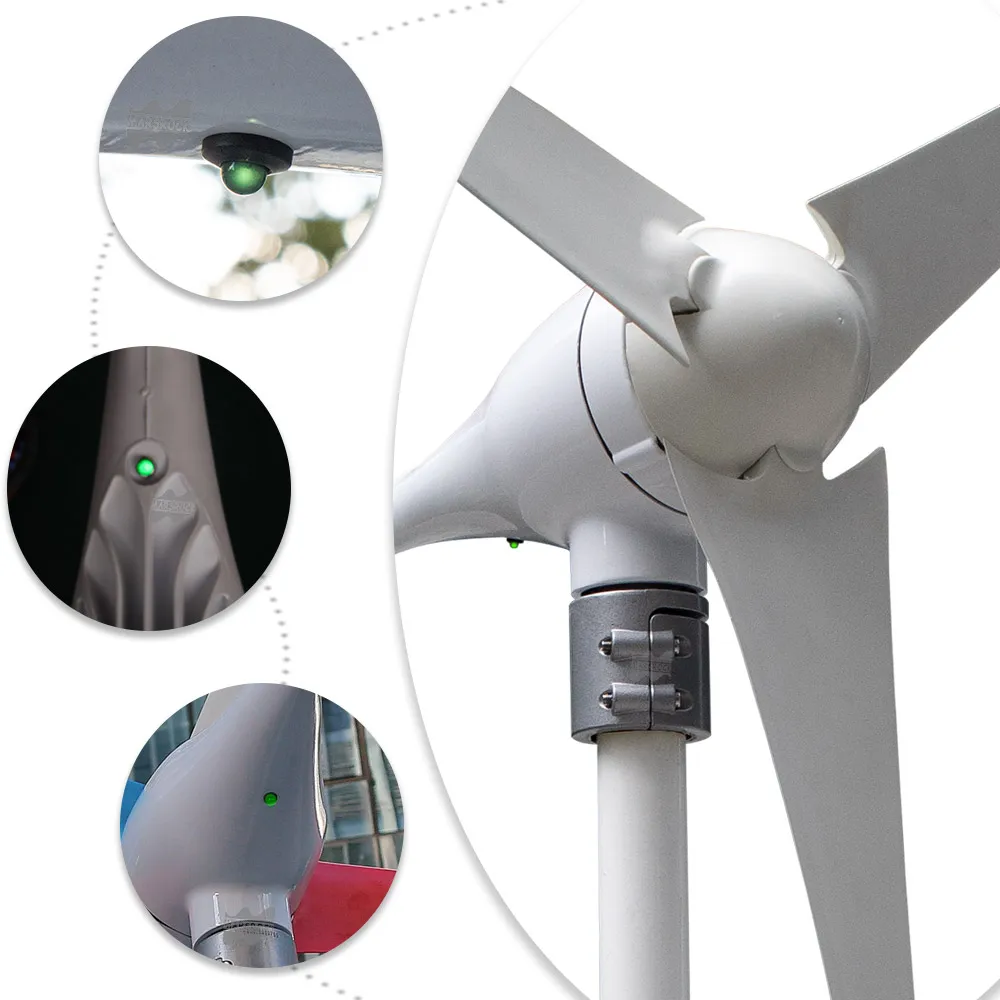

Built-in charging LED Indicator light

The built-in charging LED indicator can instantly sense the magnetic field current generated by the rotation of the generator shaft. When the wind turbine starts to rotate, the green charging indicator light keeps flashing. When the current is continuously increasing, there can be a significant current output, The green light will get brighter and brighter. Through the change of the charging indicator, you can know whether the generator can work correctly and the strength of the current output. Especially in the dark, the charging indicator can also dress up your home like a firefly, which is visible from a distance.

The charging indicator has a small power consumption, and the output circuit is designed as a whole, with good waterproof performance and long working.

Advantage of this Wind Generator

1. Full power coverage (from100w-1000w), low volume, high output power efficiency.

2. Low start-up speed, high wind power utilization, low vibration.

3. Small size and flexibility, beautiful curve, low noise and environmental harmony.

4. Simple structure, running stably, power supply for street lamp, monitoring,boat and home usage.

5.400W Horizontal axis mini wind turbine generator Output AC 12V or 24V for street lighting, home, boat battery charging wind/wind solar hybrid power system.

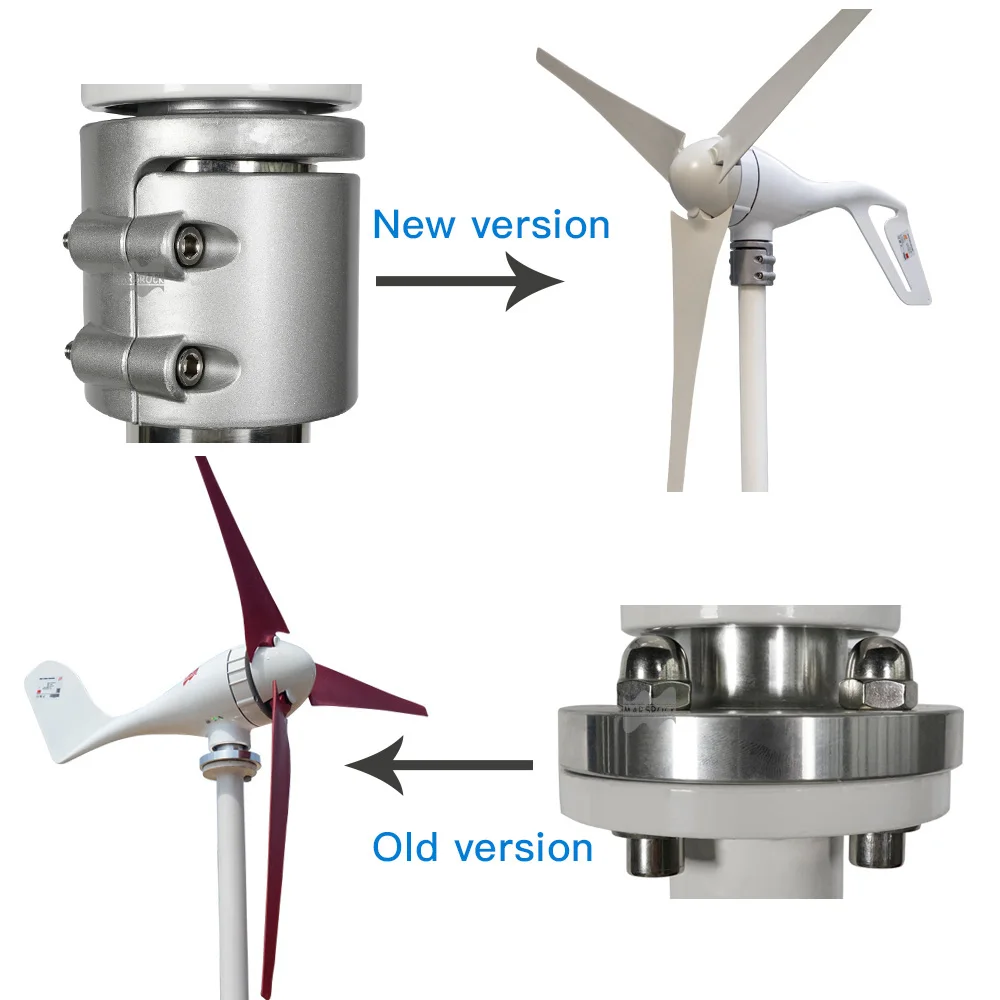

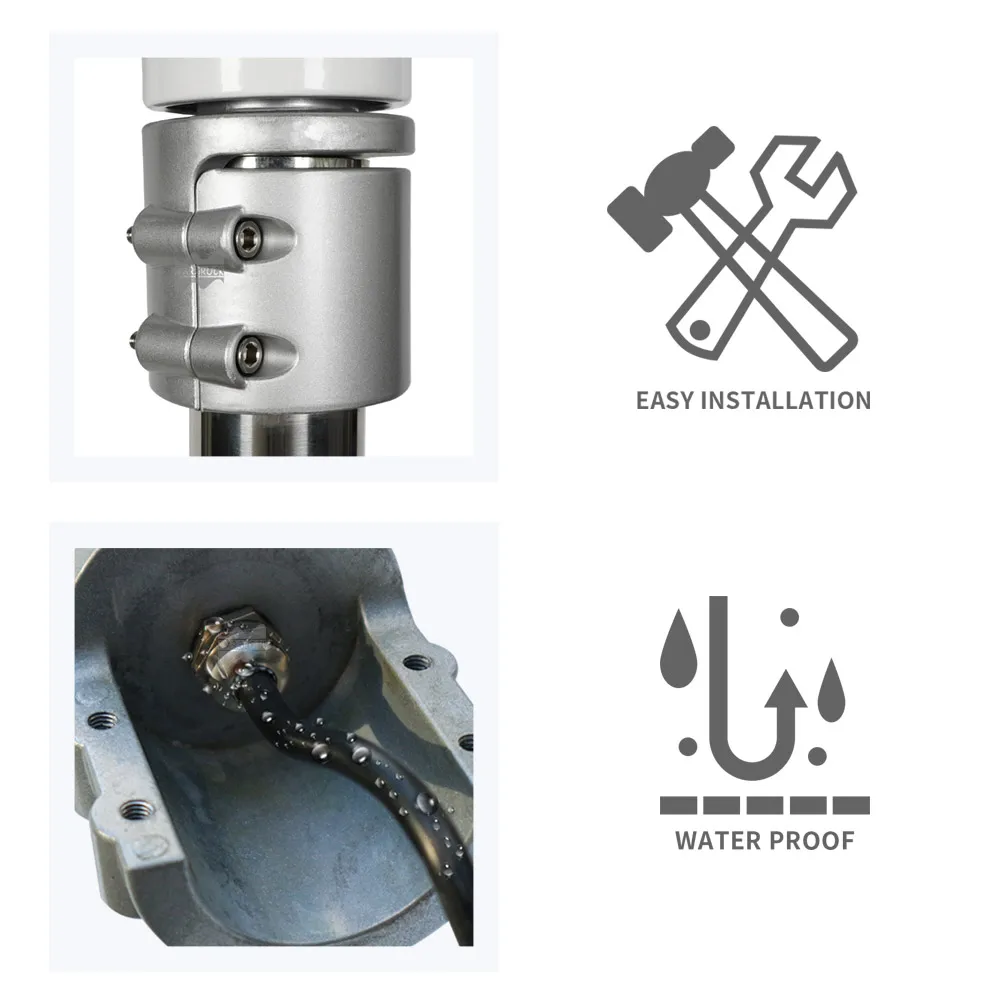

6. Easy installation, tube or flange connection optional. Human-friendly design, easy to install and maintain.

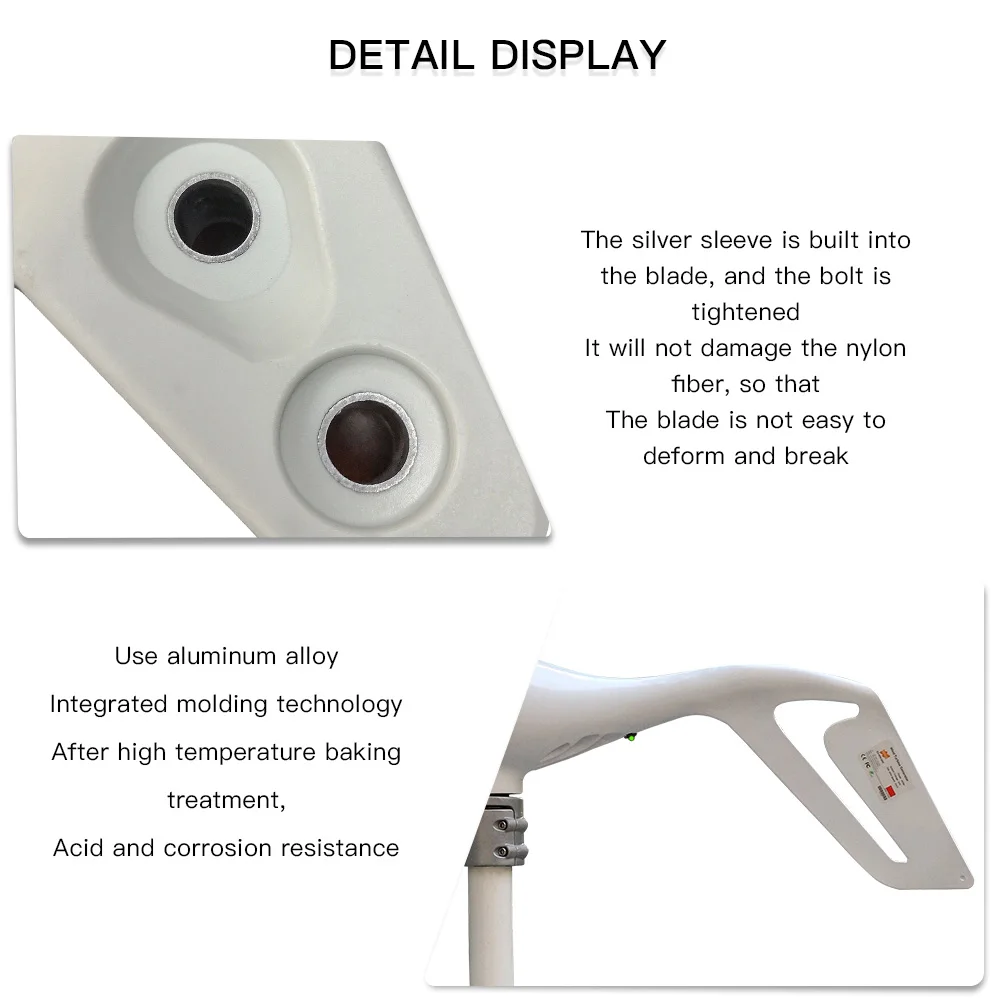

7. The wind turbines use ultra-light composite material Blades in Nylon fiber, using new art of precision injection molding , matched with optimized helped with optimized structure and aerodynamic shape, it enhanced wind power coefficient and power generating capacity.

8. Body of casting aluminum alloy, with 2 bearings swivel , making it survive stronger wind and run more safely.

9.Patented permanent magnet ac generator with special stator, effectively reduce torque, well match the wind wheel and generator, and ensure the performance of whole system.

10. The headpiece can be arbitrary rotated with anti-winding ability and automatically turned protection when faced with strong winds.

€ 150.00

P.zzi

Power	Rated power	400W	400W	400W
	Maximum power	410W	410W	410W
	Rated voltage	12/24V	12/24V	12/24V
	SKU	3S3-400	5S3-400	6S3-400
Blades	Blades Length	58cm/22.8inch
	Wheel Diameter	130cm/51.2inch
	Blades material	High-strength nano-fiber glass fiber reinforced plastic material design life 15 years

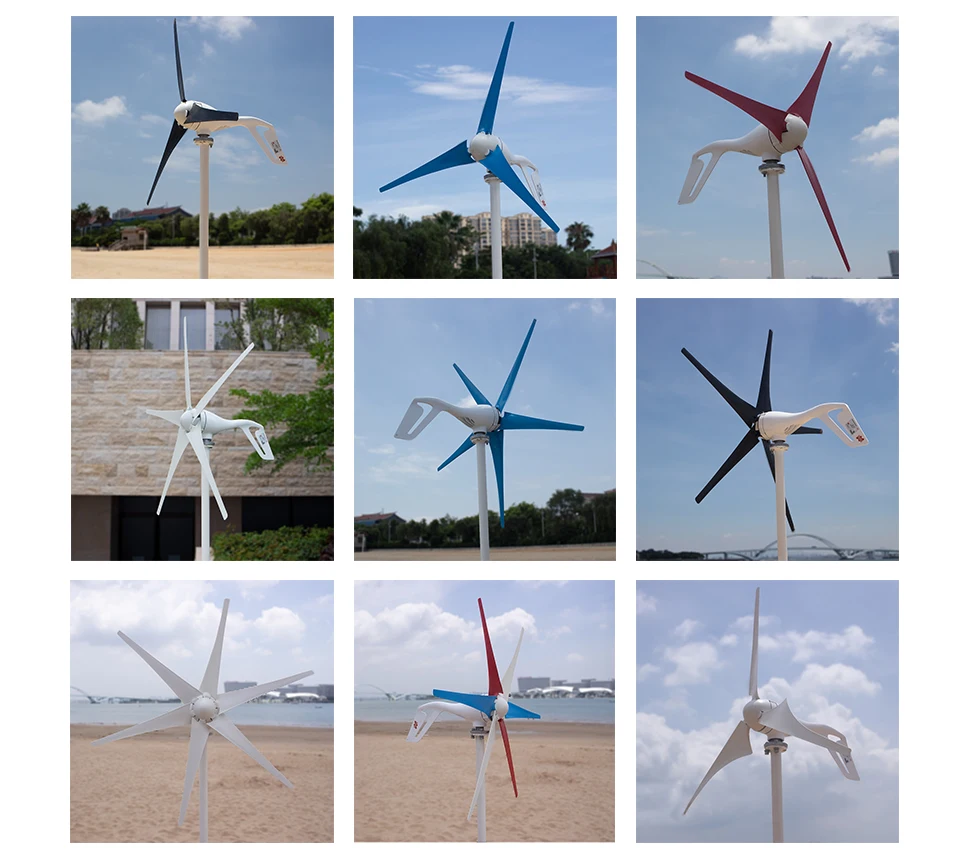

	Optional colors	White(default)/Black/Blue/Red/Green/Orange/Yellow/mixed colors
	Shape	Ordinary
	Blades QTY	3 PCS	5 PCS	6 PCS
Wind	Start-up	2.5m/s	2.2m/s	2m/s
		5.6mph	4.9mph	4.5m/s
	Rated speed	15m/s	13m/s	12m/s
		34mph	29mph	27mph
	Survival speed	50m/s	48m/s	45m/s
		111mph	107mph	100mph
Generator	Type	3 phase permanent magnet synchronous(NdFeB) AC generator
	Case	Die-casting aluminum
	Control system	Electromagnet
	Speed regulation	Automatically adjust windward direction
	Operation	-  40°C  - + 80°C

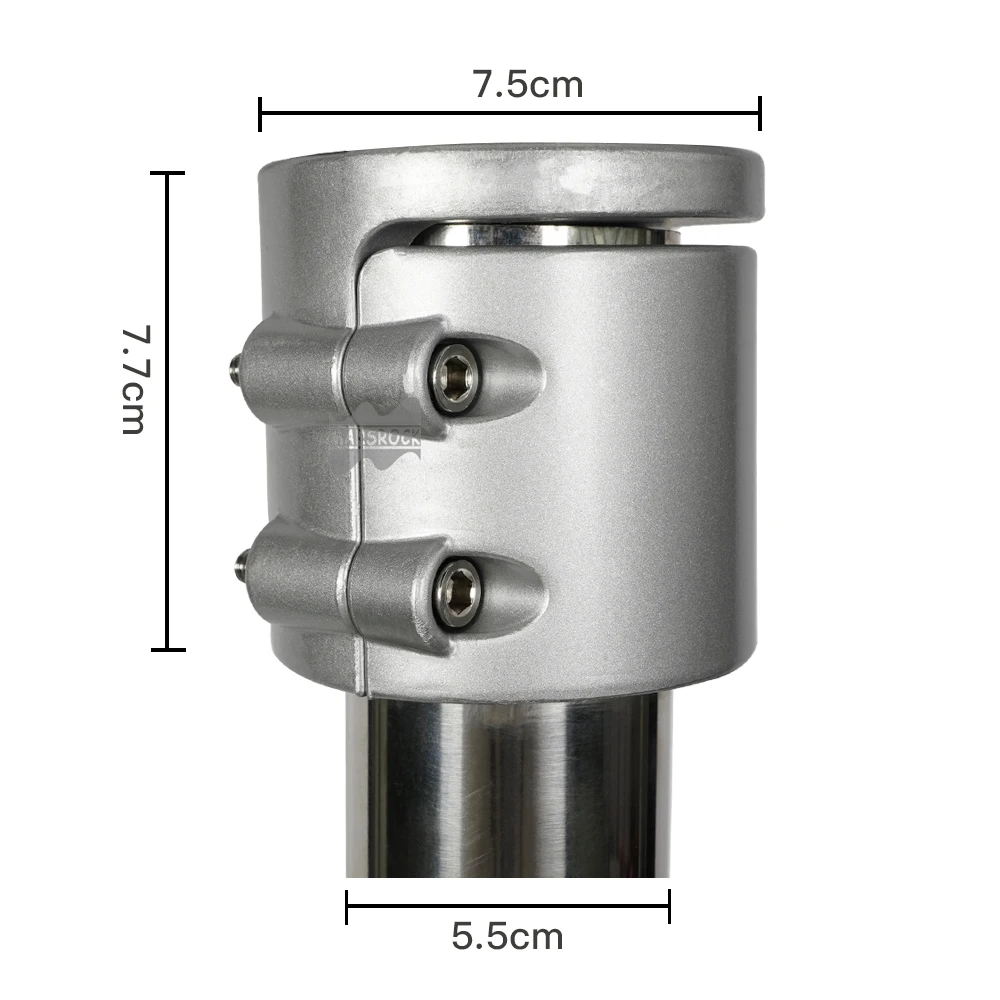

	Connector	Hoop(default), Flange to connect with tower pole
	Design life	15 Years
Suggest	Cables	Copper 3 core wind AC cable, waterproof and UV resistant
	Tower Pole	6 meter hight with Steel cable
Others	Approved	CE, ROHS, FCC, ISO, BIWEI
	SKU	3S3-400	5S3-400	6S3-400
	G.W

Delicate Structure

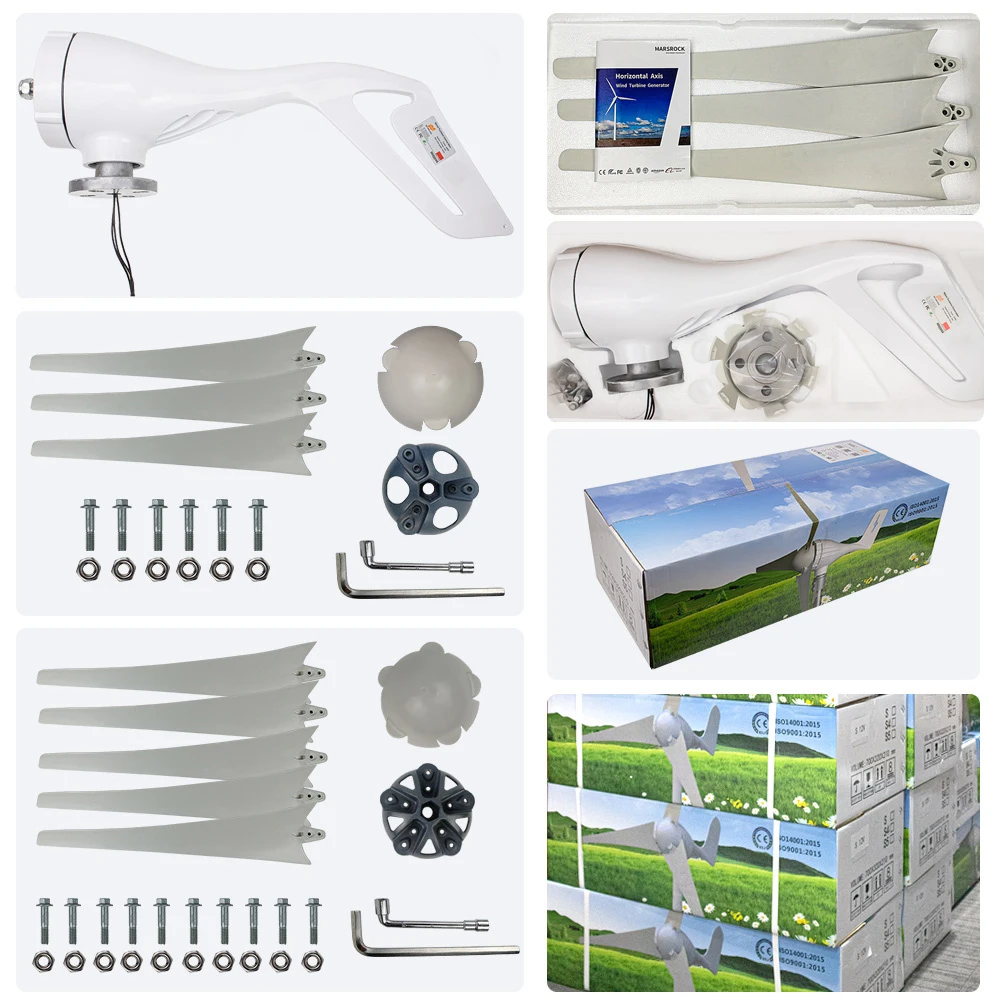

1. Turbine Body; 2. Flange base; 3. Steel pipe bracket ; 4. Spindle; 5. Hub; 6. Blades; 7. Stainless nut; 8. wind cap; 9. Screw; 10. Flat washer; 11. Spring washer; 12. Nut; 13. Stainless screw; 14. Anti-loose nut; 15. Rubber washer.

Wind Turbine Wheel Diameter

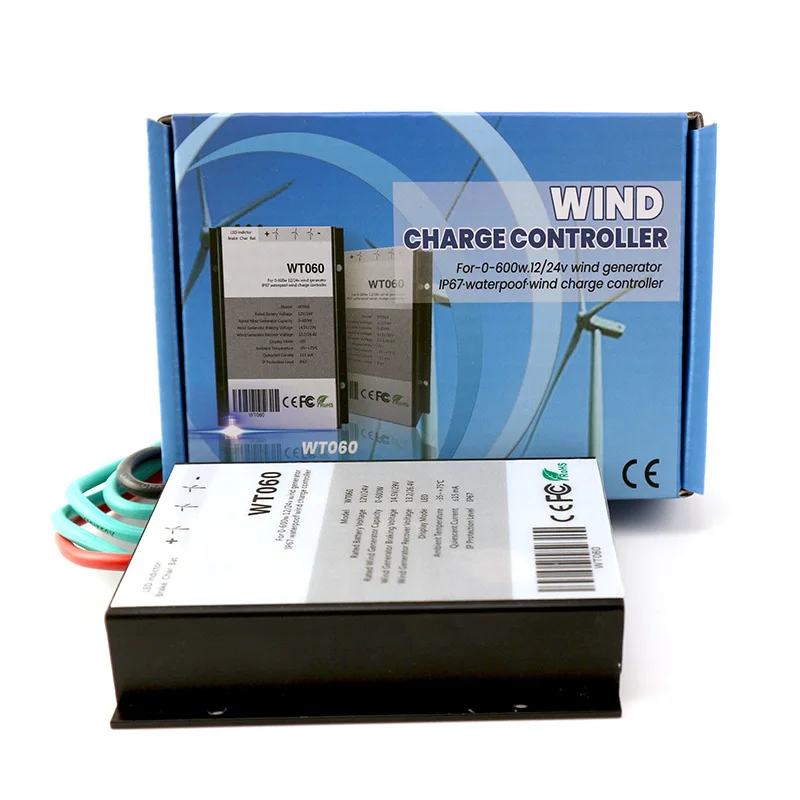

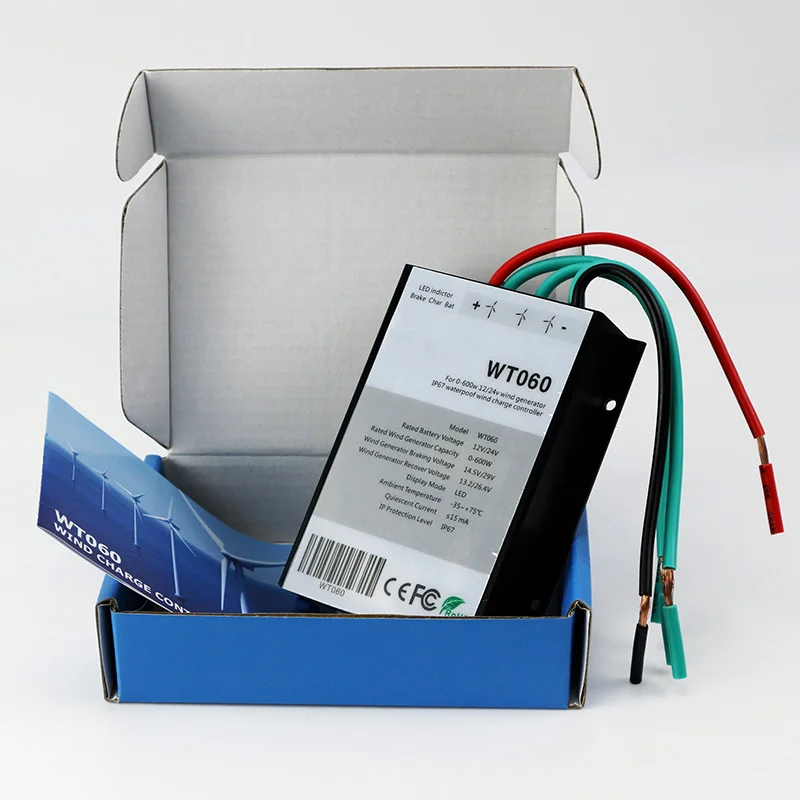

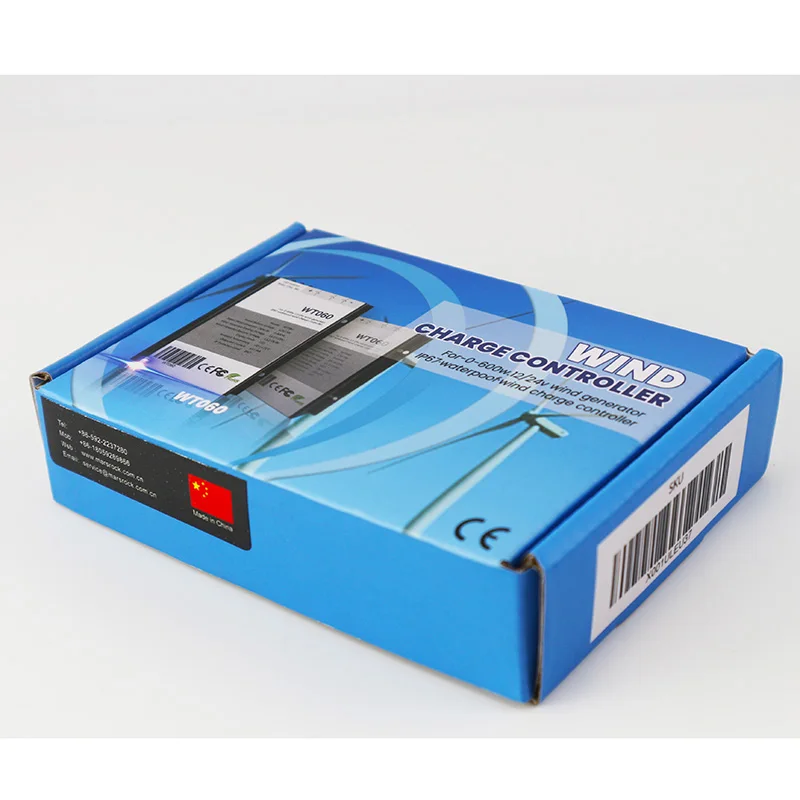

Free 600W Controller

Model	WT060	WT060
Wind Power	600W	600W
Battery rated voltage	12VDC	24VDC
Wind discharge voltage	14.5VDC	29VDC
Wind discharge recover voltage	13.5VDC	27VDC
Braking start voltage	15V	30V
Braking recover voltage	13.5VDC	27V
Braking start current	30A	30A
Battery over discharge recover voltage	12VDC	24VDC
Display	LED
Control  model	PWM(Pulse width modulation)
Operation humiture	-35~+75oC
Control size	100×87×28mm
Packing size	200x150x100mm
Product Weight	0.8kgs
Packing weight	1kgs
Quiescent current	8 mA
Waterproof	IP67
Main function	Wind charge cruuent detection, solar panel and battery transposition protection, battery overcharge.protection,short circuit protection,lighting protection, autobrake function.
